| उत्पत्ति के प्लेस: | शेन्ज़ेन, गुआंग्डोंग, चीन |
|---|---|
| ब्रांड नाम: | RAYMO |
| प्रमाणन: | Reach SGS RoHS2.0 CE |
| Model Number: | DIN connector M16 680 Series |
| न्यूनतम आदेश मात्रा: | 1 टुकड़ा/टुकड़े |
| मूल्य: | negotiable |
| Packaging Details: | Plastic Bag & Carton |
| प्रसव के समय: | 5-7 कार्य दिवस |
| Payment Terms: | T/T, D/A, D/P,L/C, MoneyGram, Western Union |
| आपूर्ति की क्षमता: | 5000 टुकड़े/हप्ता |

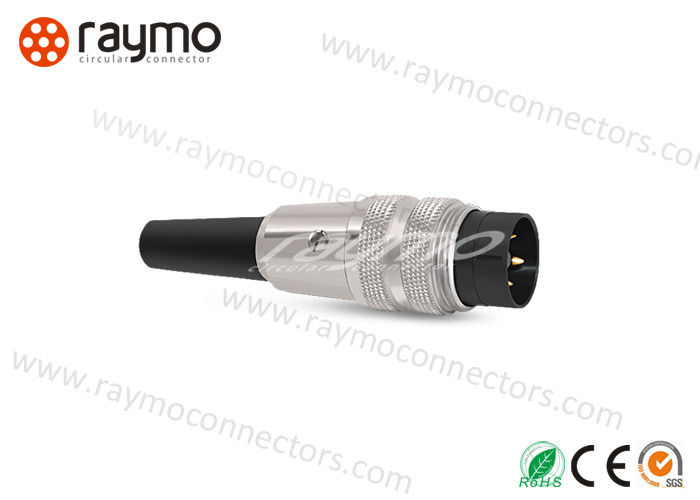

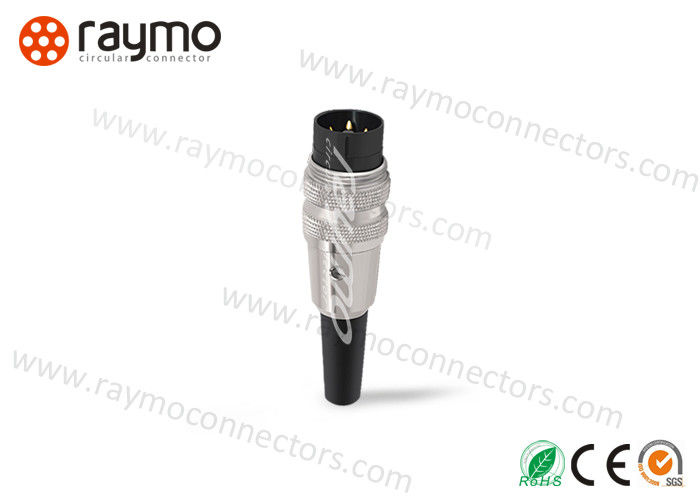

| Prct Name: | Din Connector male connector | Shell size: | M16 680Series |
|---|---|---|---|
| Contact no.: | 4pin male contact | इन्सुलेटर: | पी पी एस |
| Shell Color: | silver colour | लॉकिंग प्रणाली: | पेंच फिक्सिंग |
| प्रमुखता देना: | threaded wire connectors,threaded cable connectors |
||
| Mechanical data | Insertion force/contact ≤ 5.0 N 1 |
| Withdrawal force/contact ≥ 1.2 N (3-8 poles) | |
| ≥ 0.9 N (12 poles) 1 | |
| Tightening torque connector 1-3 Nm | |
| Tightening torque nut 1-3 Nm | |
| Protection class IP40 2 |
| Connectable conductors for solder area | Section ≤ 0.75 mm² (AWG 20) (3-8 poles); ≤ 0.25 mm² (AWG 24) (12 poles) |
| Contact resistance | ≤ 5 mΩ |
| Rated current | 5 A (Tamb 40 °C, 3-8 poles);3 A (Tamb 40 °C, 12 poles) |
| Rated voltage | with pollution degree 1: |
| 300 V (versions 30, 40, 50/6, 60, 70) | |
| 100 V (versions 50, 71, 80, 81) | |
| 160 V (Polbild 120) | |
| with pollution degree 2: | |
| 250 V (versions 30, 40) | |
| 32 V (versions 50, 71, 80, 81) | |
| 160 V (versions 50/6, 60, 70, 120) | |
| Rated impulse voltage | 1500 V (versions 30, 40, 50/6, 60,70, 120) |
| 500 V (versions 50, 71, 80, 81) | |
| Material group | II (IEC)/1 (UL) (400 ≤ CTI < 600) |
| Overvoltage category | I |
| Insulation resistance | > 100 MΩ |
