| उत्पत्ति के प्लेस: | चीन |
|---|---|
| ब्रांड नाम: | RAYMO |
| प्रमाणन: | RoHs2.0 CE ISO9001 |
| Model Number: | KV30/PHG free sokcet |
| न्यूनतम आदेश मात्रा: | 1 टुकड़ा/टुकड़े |
| मूल्य: | negotiable |
| Packaging Details: | Plastic Bag & Carton |
| प्रसव के समय: | 5-7 कार्य दिवस |
| Payment Terms: | T/T, D/A, D/P,L/C, MoneyGram, Western Union |
| आपूर्ति की क्षमता: | 5000 टुकड़े/हप्ता |

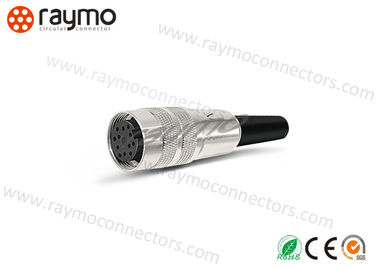

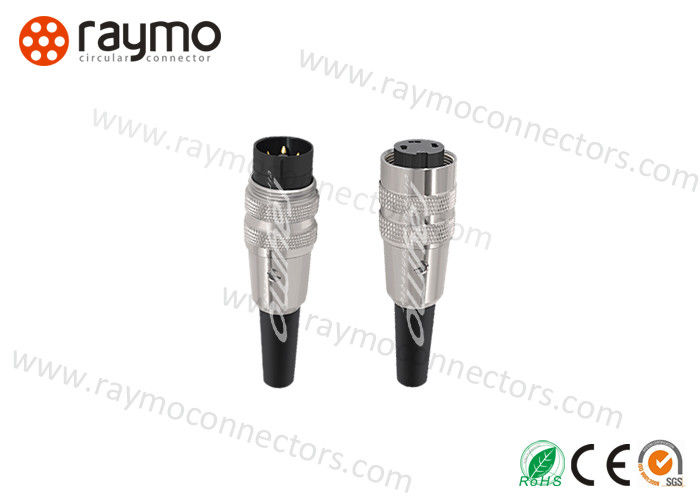

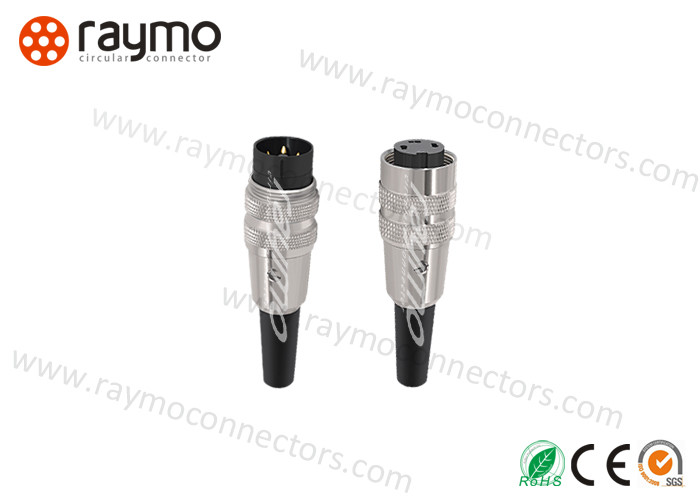

| Prct Name: | Threaded joint M16 Long version cable socket | Shell size: | 680 Series |
|---|---|---|---|
| Contact no.: | 3pin female contact | इन्सुलेटर: | पी पी एस |
| Shell Color: | silver nicke-plated colour | शेल सामग्री: | क्यूज़न |
| प्रमुखता देना: | threaded wire connectors,threaded cable connectors |
||
| Insulating body | Insulating body PA GF, V-0 according to UL94 |
| Contact pin | CuZn, silver-plated and flash goldplated (3-8 poles) |
| CuZn, pre-nickel and goldplated (12 poles) | |
| Ground contact | spring CuZn, pre-nickel and tin-plated |
| Sleeve | PC, HB according to UL94 |
| Housing | CuZn, nickel-plated |
| Knurled screw | CuZn, nickel-plated |
| Bend protection sleeve | TPE |
| Screw steel | Nickel-plated |
| Mechanical data | |
| Tightening torque connector | 1-3 Nm |
| Tightening torque nut | 1-3 Nm |
| Protection class | IP40 |
| Connectable conductors for solder area | Section ≤ 0.75 mm² (AWG 20) (3-8 poles) |
| Section≤ 0.25 mm² (AWG 24) (12 poles) | |
| Cable diameter | 4–6 mm |
| Electrical data (at Tamb 20 °C) | |
| Rated current | 5 A (Tamb 40 °C, 3-8 poles) |
| 3 A (Tamb 40 °C, 12 poles) | |
| Rated voltage | pollution degree 1: |
| 300 V (versions 30, 40, 50/6, 60, 70) | |
| 100 V (versions 50, 71, 80, 81) | |
| 160 V (Polbild 120) | |
| with pollution degree 2: | |
| 250 V (versions 30, 40) | |
| 32 V (versions 50, 71, 80, 81) | |
| 160 V (versions 50/6, 60, 70, 120) | |
| Rated impulse voltage | 1500 V (versions 30, 40, 50/6, 60,70, 120) |
| 500 V (versions 50, 71, 80, 81) | |
| Insulation resistance > 100 MΩ | Insulation resistance > 100 MΩ |
