| ब्रांड नाम: | Raymo |
|---|---|
| प्रमाणन: | CE/RoHs/REACH/ISO9001:2015 |
| मॉडल संख्या: | MDM-9SS |
| दस्तावेज़: | J30J Miniature Rectangular ...es.pdf |
| Minimum Order Quantity: | 1 Piece |
| मूल्य: | 5-15 USD |
| Packaging Details: | CTN |
| Delivery Time: | 3-4 Weeks |
| भुगतान शर्तें: | टी/टी, डी/ए, डी/पी, वेस्टर्न यूनियन, मनीग्राम |
| Supply Ability: | 5000PCS Per Month |
| प्रकार: | योजक | सहनशील वोल्टेज: | 500VAC |
|---|---|---|---|
| केंद्र कंडक्टर: | तांबा मिश्र धातु, सोने की चढ़ाना | तापमान की रेंज: | -55～+125 ℃ |

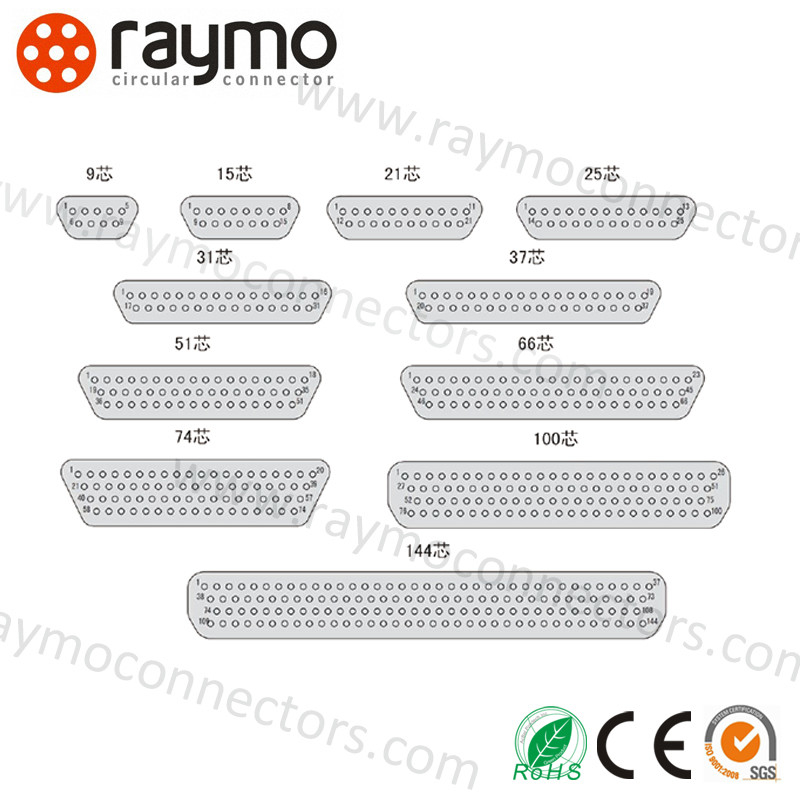

| संभोग चक्र: | 500 बार | उपलब्ध पिन: | 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 |
| रिसाव दर: | ≤1.01x10^-3 pa.cm^3/s | तार की लंबाई: | 50 सेमी, 500 मिमी |
| प्रमुखता देना: | J30J series 9 pin connector,500VAC gold plated connector,copper alloy J30J connector |
||
| Attribute | Value |
|---|---|
| Type | Connector |
| Withstanding Voltage | 500VAC |
| Center Conductor | Copper Alloy, Gold Plating |
| Temperature Range | -55～+125 ℃ |
| Mating Cycle | 500 Times |
| Available Pins | 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 |
| Leak Rate | ≤1.01X10^-3 Pa.cm³/s |
| Wire Length | 50cm, 500mm |
| Parameter | Value |
|---|---|
| Cable Length | As Required |
| Mating Cable | AFR-250, White Wire 0.1~0.15mm² |
| Voltage Rating | 250V |
| Temperature Range | -55～+125 ℃ |
| Type | Connector |
| Available Pins | 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 |
| Contact Pin | 9 Pins |
| Application | Electronic Equipment |
