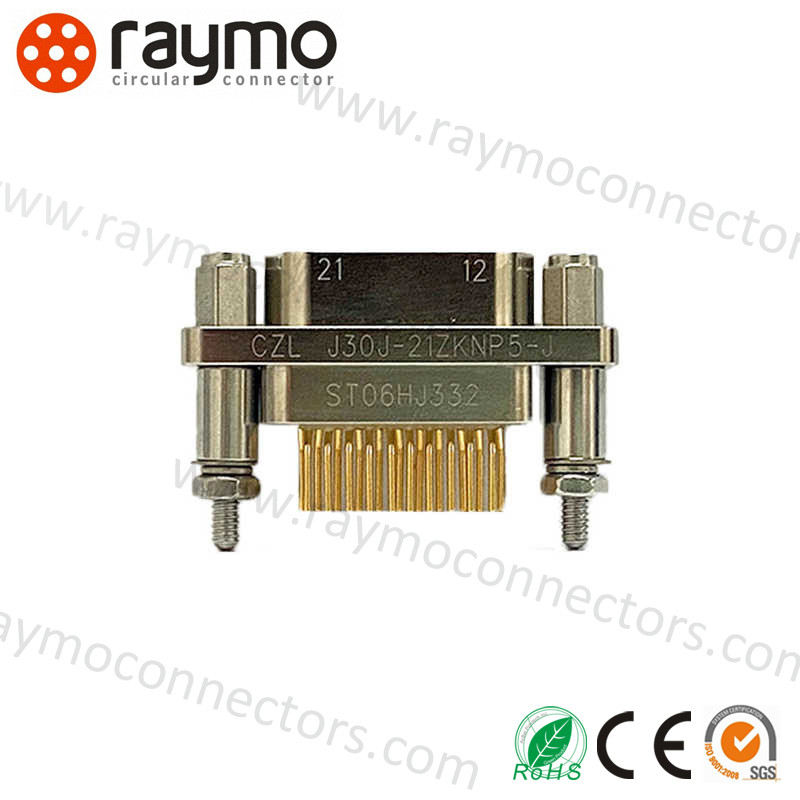

| उत्पत्ति के प्लेस: | चीन |
|---|---|
| ब्रांड नाम: | RAYMO |
| प्रमाणन: | CE/ROHS/REACH/SGS |
| मॉडल संख्या: | J30J-15ZK |
| न्यूनतम आदेश मात्रा: | 1 टुकड़ा |
| मूल्य: | 2.1 |
| पैकेजिंग विवरण: | पीई बैग और कार्टन |
| प्रसव के समय: | 5-7 कार्य दिवस |
| भुगतान शर्तें: | एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम |
| आपूर्ति की क्षमता: | 50000pcs/महीना |
| कनेक्टर प्रकार: | J30J श्रृंखला आयताकार कनेक्टर | प्रकार: | डी-उप माइक्रो-डी कनेक्टर |
|---|---|---|---|
| सामग्री: | निकेल प्लेटेड के साथ एल्यूमीनियम | संभोग चक्र: | 500 बार |
| संपर्क: | 9,15,21.25.31.37.51.66.74.100.144 | आईपी रैंकिंग: | IP65 |
| प्रमुखता देना: | Durable Rectangular Electrical Connectors,D-SUB Micro-D Rectangular Electrical Connectors,9 Contacts Rectangular Electrical Connectors |
||
1 .Corresponding to American MDM series products；
|
Environmental temperature
|
-55～+125℃
|
Contact resistance
|
≤10mΩ
|
|
Relative humidity
|
+40℃ up to 95%
|
Insulation resistant
|
≥5000MΩ
|
|
vibration
|
10～2000Hz 196m/s2
|
Dielectric withstand voltage
|
800V
|
|
shock
|
735m/s²
|
Mechanical Life
|
500 times
|
|
total acceleration RMS
|
23.1G
|
Instant break time
|
≤1μs
|
|
current rating
|
3A
|
|
| J30J | X | -15 | ZK | X | P | - G | AD | |
| Main code: | J30J | |||||||
| J30J series | ||||||||
| Variations: | ||||||||
| No designator-basic type, | ||||||||
| C-The outer material is tin phosphor copper and plating nickel, | ||||||||
| D-Mounting hole changed for M2-6H, | ||||||||
| M-Sealed with glue | ||||||||
| Number of contacts: | 15 | |||||||
| 9, 15, 21, 25, 31, 37, 51, 74, 100 | ||||||||
| Connector and contact type: | ZK | |||||||
| TJ- plug with pins, | ||||||||
| ZK- Receptacle with socket, | ||||||||
| TJ/ZK is fixation combination | ||||||||
| Type of contact terminal: | ||||||||
| Null-Crimp, | ||||||||
| S-Solder, | ||||||||
| N-Straight inserting PCB, | ||||||||

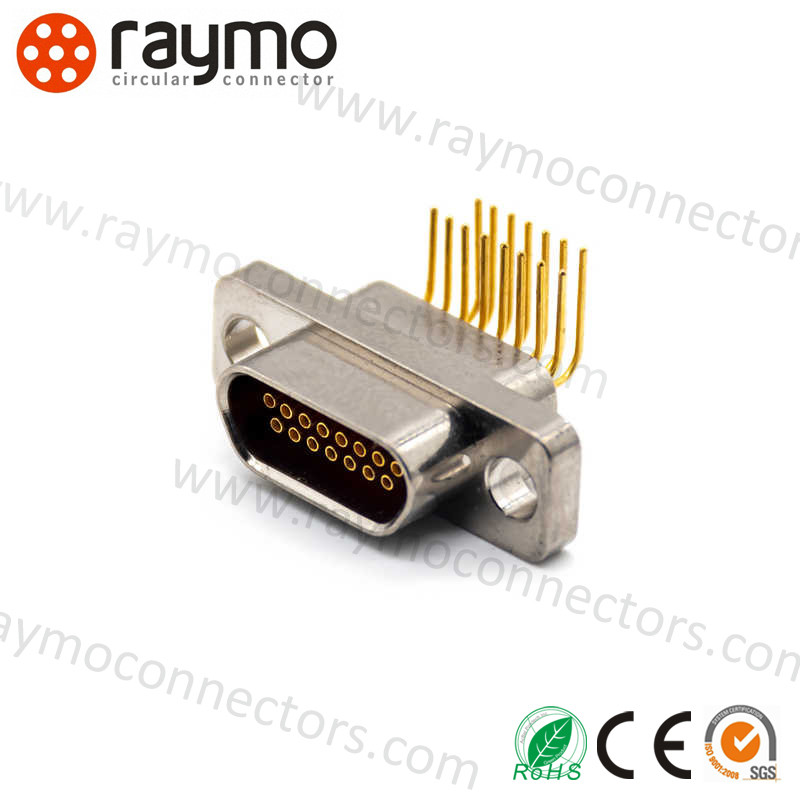

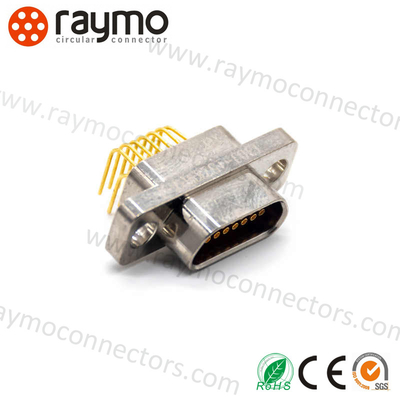

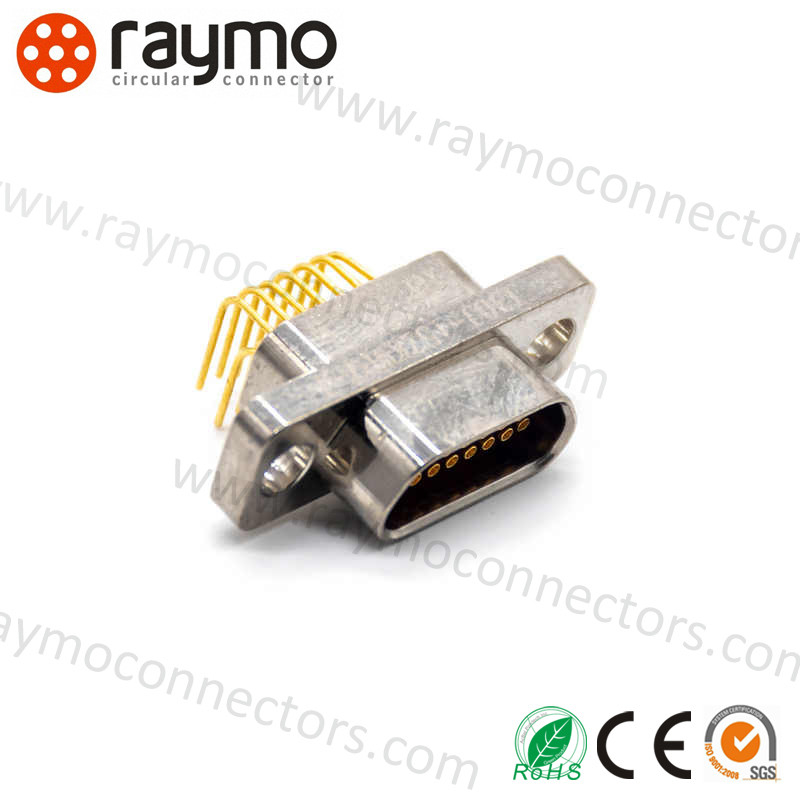

| W-Right angle inserting PCB | ||||||||
| Type of locking subassemblies: | P | |||||||
| Check More details in J30J Locking Subassemblies | ||||||||
| Finishing: | - G | |||||||
| Null- Shell plated with nickel, | ||||||||
| G- Shell plated with cadmium | ||||||||
| Improved type: | A | |||||||

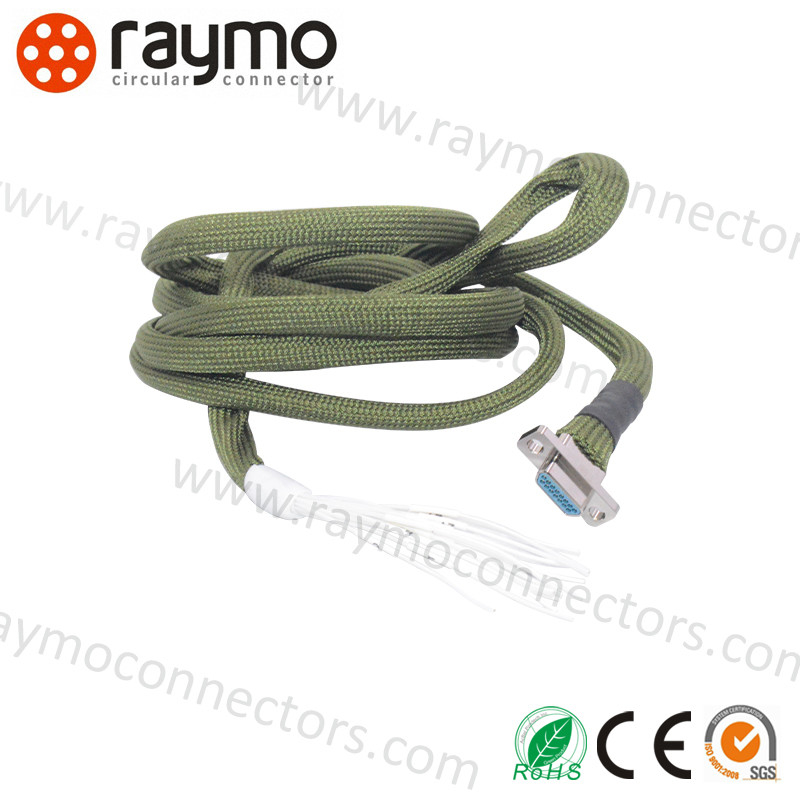

| A-Shell with shielding braid cable clipper, | ||||||||
| C-Suitable for contact and wire is right angle, | ||||||||
| D-There is spinning-resistance groove in the interface terminal of the receptacle shell flange, | ||||||||
| AD-The combination of variation A and D, | ||||||||
| J-The grid of PCB is 1.27×2.54 (row*line), | ||||||||
| Q-The shell flange is widened. |
| J30J Common Series | |||||
| J30J Crimp series | J30J Solder S series | J30J Straight Inserting PCB N series | J30J Straight Inserting PCB N-J series | J30J 90° Inserting PCB W series | J30J 90° Inserting PCB W-J series |
| with crimp contacts | with solder contacts | with the grid of 2.54X2.54 | with the grid of 1.27X2.54 (row x line) | with the grid of 2.54X2. 54 | with the grid of 1.27X2. 54 (row X line) |
