| उत्पत्ति के प्लेस: | शेनझेन, चीन |
|---|---|
| ब्रांड नाम: | RAYMO |
| प्रमाणन: | RoHS2.0, ISO:9001-2015, CE , SGS, REACH |
| मॉडल संख्या: | JY27467T09F35PNH |
| न्यूनतम आदेश मात्रा: | 1 टुकड़ा |
| मूल्य: | negotiable |
| पैकेजिंग विवरण: | 50pc/ctn |
| प्रसव के समय: | 5-8 कार्य दिवस |
| भुगतान शर्तें: | डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम, एल/सी |
| आपूर्ति की क्षमता: | 500 पीसीएस / सप्ताह |
| PRCT नाम: | सैन्य सर्कुलर कनेक्टर | आवास आकार: | 09 |
|---|---|---|---|
| आवास चढ़ाना: | इलेक्ट्रोलेस निकल चढ़ाना | संपर्क आकार: | 6-22d |
| माउन्टिंग का प्रकार: | केबल माउंट | समाप्ति विधि: | मिलाप |
| लिंग से संपर्क करें: | पुरुष | आईपी रेटिंग: | IP68 |
| प्रमुखता देना: | JY27467T09F35PNH Military Circular Connectors,Amphenol Military Circular Connectors,MIL-DTL-38999 Military Circular Connectors |
||

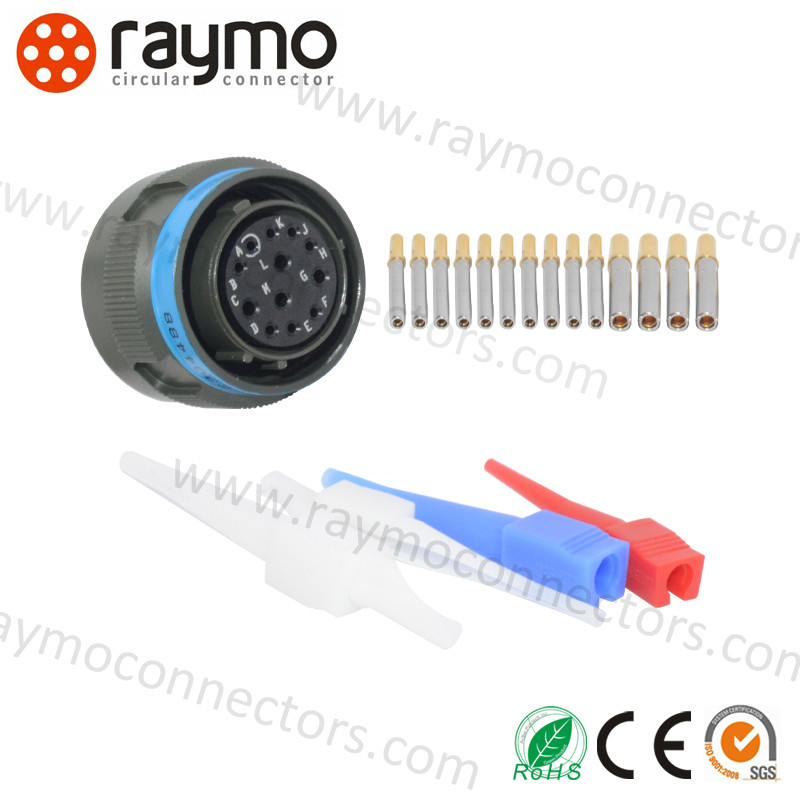

Description for Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors
GJB599A series are made according to the same standard with MIL-DTL-38999K series. The difference is that: the basic part number of GJB599A is JY, while MIL-DTL-38999K is MS. GJB599A series is interchangeable with MIL-DLT-38999K series..
[Part number example]
JY27467T25E35SN-H JY series plug, threaded shell end, can be mounted with accessory, 25# shell, stainless steel passive plating, 35# layout, filled with sockets, N polarization, soldering contacts.
Specification for Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors
| Prct attribute | Attribute Value |
| Manufacturer | RAYMO |
| Prct name | Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors |
| Model | JY27467T09F35PNH |
| Contact Gender | pin(male) |
| Contacts | 6-22D |
| Body size | 09 |
| Terminal | Solder |
| Housing plating | electroless nickel plating |
| IP Rating | IP68 |
| Application | military systems such as aviation, aerospace, weapon, and other electronic equipment systems |
Electrical data & Mechanical data for Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors
| Housing | Aluminum alloy/stainless steel |
| Plating |
B class: olive green cadmium plating E class: stainless steel passive F class: electroness nickel plating |
| Insulator | Thermoset plastic |
| Grommet and seal | Silicon rubber |
| Contact |
Gold-plated copper alloy, crimping, soldering, PCB |
| Endurance | 500 cycles |
| Vibration |
Sinusoid vibration: frequency 10-2000Hz, acceleration: 294m/s2 Random vibration: frequency 100-1000Hz, power spectral density: 1g2/Hz |
| Shock | At 3 ms half sinusoid, peak value |
| Operating temperature |
B class: -65℃～+175℃ E, F class: -65℃～+200℃ |
| Salt spray |
According to method 1001 GJB1217 B class 500h, E class 1000h F class 48h |
| Relative humidity | 98% at 40℃ |
| Operating height | ≤30480m |
Features for Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors
Application for Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors
Military systems such as
Our advantage for Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors

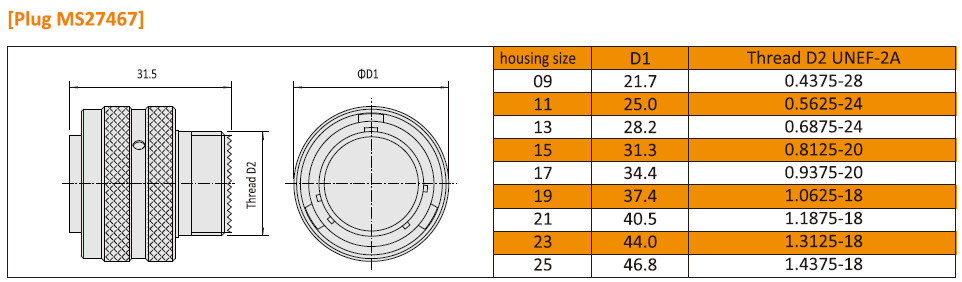

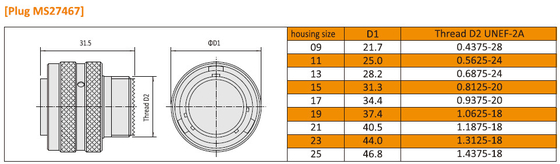

Dimention for Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors
