| उत्पत्ति के प्लेस: | चीन |
|---|---|
| ब्रांड नाम: | RAYMO |
| प्रमाणन: | CE/ROHS/REACH/SGS/ISO9001 |
| मॉडल संख्या: | RM-DKE-2F1C-P11KS |
| न्यूनतम आदेश मात्रा: | 1 टुकड़ा |
| मूल्य: | 4.5-14.5 |
| पैकेजिंग विवरण: | पीई बैग और कार्टन |
| प्रसव के समय: | 5-7 कार्य दिवस |
| भुगतान शर्तें: | एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम |
| आपूर्ति की क्षमता: | 50000pcs/महीना |
| प्रकार: | घुमावदार कनेक्टर खींचें | लिंग: | महिला मिलाप संपर्क |
|---|---|---|---|
| आवेदन: | ऑटोमोटिव | रंग: | प्राकृतिक रंग |
| इन्सुलेटर: | पीपीएस/पीक | शेल सामग्री: | पीतल |
| धैर्य: | 5000 चक्र | आईपी रैंकिंग: | IP68 |
| प्रमुखता देना: | Fischer Dke Circular Push Pull Conenctors,PEEK IP68 Circular Connectors,104 Shell IP68 Circular Connectors |
||

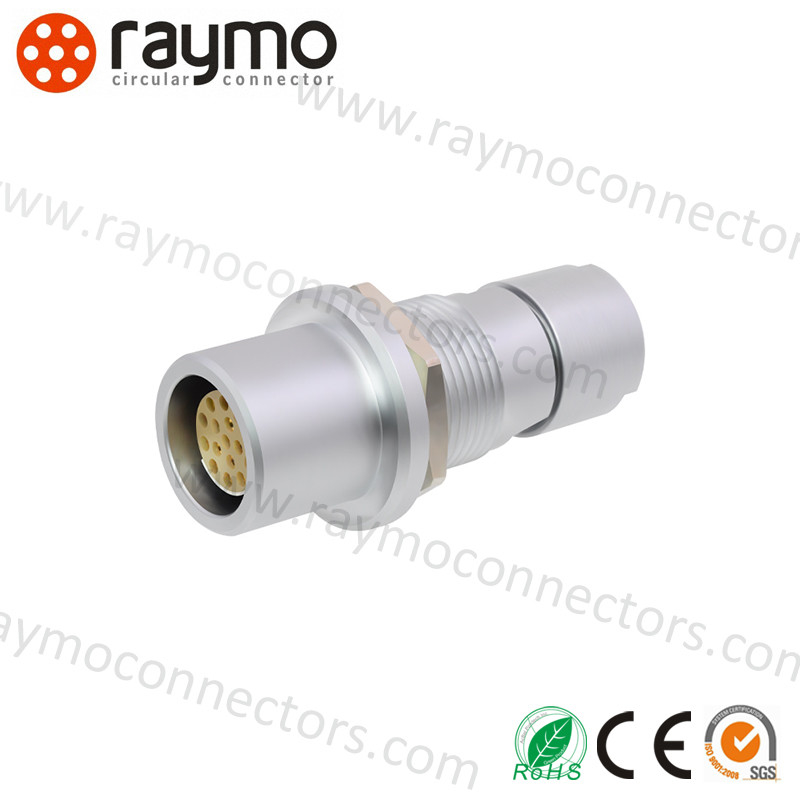

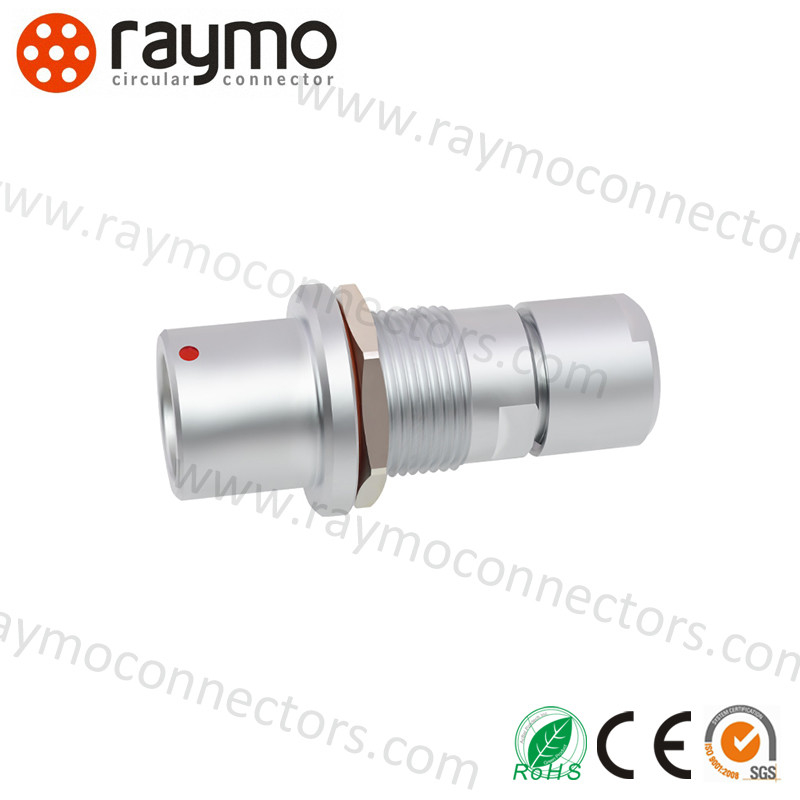

| RM-F Series Circular Push Pull Connector | |||
| Shell size | 0F(102). 1F(103), AF(1031),2F(104),3F(105) | Contact No. | 2,3,4,5,6,7,8,9,10,12,14,16,19 |
| Shell model | Straight plug FGG | MOQ | 1pc |
| Gender | Male, Female | Free Sample | available |
| Endurance | 5000 mating cycles | IP Level | IP68 |
| Technical Characteristics | |||
| Temperature Range | - 40° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >96hr |
| Climatical Category | 50/175/21 | Shielding (min) | > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
| IP Rating | IP 68 | Certifications | ISO9001 CE ROHS SGS |
All Multipole body styles are mechanically coded.
Code 1 is the standard, but other codes can be requested
If you have purchased fischer connector and know the original model, please tell us. We will directly offer you our corresponding one.
If you don’t know much about the connector, please make choose according the following factors:
