| उत्पत्ति के प्लेस: | शेनझेन, चीन |
|---|---|
| ब्रांड नाम: | RAYMO |
| प्रमाणन: | RoHS2.0, ISO:9001-2015, CE , SGS, REACH |
| मॉडल संख्या: | आरएम-एम 8-1 |
| न्यूनतम आदेश मात्रा: | 1 टुकड़ा |
| मूल्य: | negotiable |
| पैकेजिंग विवरण: | 100 पीसी / सीटीएन |
| प्रसव के समय: | 5-8 कार्य दिवस |
| भुगतान शर्तें: | डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम, एल/सी |
| आपूर्ति की क्षमता: | 5000 पीसी/हप्ता |
| PRCT नाम: | लघु परिपत्र कनेक्टर | संपर्कों की संख्या: | 3 4 5 6 8 डंडे |
|---|---|---|---|
| माउन्टिंग का प्रकार: | पैनल माउंट/केबल माउंट | समाप्ति विधि: | सोल्डर/पीसीबी |
| लिंग से संपर्क करें: | पुरुष स्त्री | आईपी रेटिंग: | IP67 |
| वर्तमान रेटिंग: | 1.5-3 ए | शारीरिक अभिविन्यास: | सीधा / समकोण |
| प्रमुखता देना: | Shielded Miniature Circular Connectors,M8 Angled Miniature Circular Connectors,Actuators M8 Right Angle Connector |
||

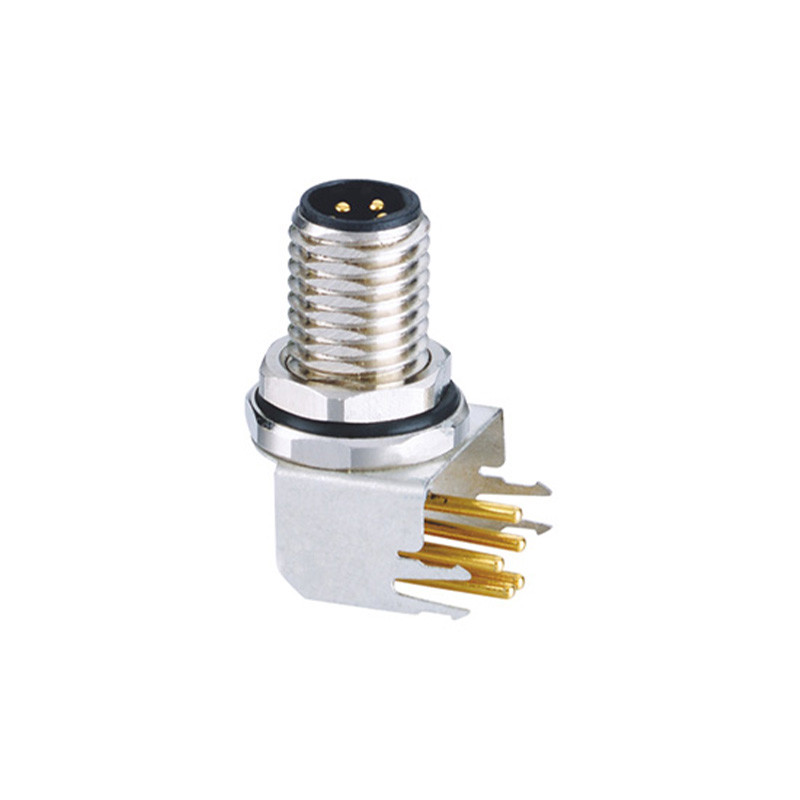

Description for binder 768 series M8 3 4 5 6 8 poles sensor miniature circular connector
The M8 series provides a wide range of metric M8 connectors for small sensors and actuators. Available in a shielded form and rated to IP67, these connectors are ideally suited for inductrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacle supplied with a solder-up for wire connecting or with PCB panel solder contacts. A field attachable/mountable connector is also available.
Specification for binder 768 series M8 3 4 5 6 8 poles sensor miniature circular connector
| Prct attribute | Attribute Value |
| Manufacturer | RAYMO |
| Prct name | miniature circular connector |
| Connector size | M8 |
| Contact Gender | pole(female) |
| Number of contacts | 3 4 5 6 8 contacts |
| Mounting Style | Panel mount/cable mount |
| Termination Style | Solder/PCB |
| Current Rating | 1.5-3A |
| IP Rating | IP67 |
| Application | Sensors, Actuators |
| Shell Material | (1) Connector material: Plastic PA+GF (2) M8 male to female molded cable (3) Contacts:Brass, Gold Plated (4) Cable material: PVC/TPU |
| Wire Gauge | 24-28AWG |
| Certifications | ISO9001/ CE/ ROHS2.0/ SGS |
| Temperature Range | -25°C, +80°C |
Electrical data & Mechanical data for binder 768 series M8 3 4 5 6 8 poles sensor miniature circular connector
| Contacts | Rated current | Voltage | Wire gauge/size | ||
| A/C | D/C | mm2 | AWG | ||
| 3 pins | 3A | 50V | 60V | 0.25 | 24 |
| 4 pins | 3A | 50V | 60V | 0.25 | 24 |
| 5 pins | 3A | 30V | 30V | 0.25 | 24 |
| 6 pins | 1.5A | 30V | 30V | 0.14 | 26 |
| 8 pins | 1.5A | 30V | 30V | 0.14 | 26 |
Features for binder 768 series M8 3 4 5 6 8 poles sensor miniature circular connector
Application for binder 768 series M8 3 4 5 6 8 poles sensor miniature circular connector
RAYMO has already established an integrated quality control system from R&D, supply chain, marketing, sales, after-sales service to meet customer deeper demand, and expect to achieve Raymo’s globalization strategy.
Our advantage for binder 768 series M8 3 4 5 6 8 poles sensor miniature circular connector
binder 768 series M8 3 4 5 6 8 poles sensor miniature circular connector
