| उत्पत्ति के प्लेस: | शेनझेन, चीन |
|---|---|
| ब्रांड नाम: | RAYMO |
| प्रमाणन: | SGS, RoHs2.0 CE ISO:9001-2015 |
| Model Number: | PAA.M0.4GL.AC39A |
| न्यूनतम आदेश मात्रा: | 1 टुकड़ा/टुकड़े |
| मूल्य: | negotiable |
| Packaging Details: | Plastic Bag & Carton |
| प्रसव के समय: | 5-7 कार्य दिवस |
| Payment Terms: | T/T, PAYPAL, EBAY |
| आपूर्ति की क्षमता: | 5000 टुकड़े/हप्ता |
| Prct Name: | Plastic connector | खोल का आकार: | 1p |
|---|---|---|---|
| संपर्क नंबर।: | 4 पिन | Shell material: | PC gray colour |
| Screw colour: | gray, red, blue, green , black, white, yellow | इन्सुलेटर: | पी पी एस |
| प्रमुखता देना: | plastic push pull connector,cable assembly connector |
||
| P/N . | PAA.M0.4GL.AC39A |

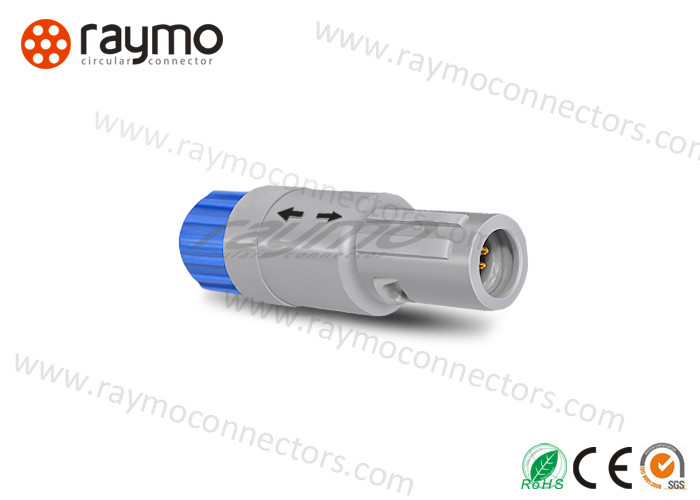

| Description | cable to cable connector, 3pin female contact, 65 cable collet, round nut in gray colour, 2key/channel , 40°, blue colour |
| Characteristics | |
| 1 | Secure high performance push-pull Self-locking system |
| 2 | IP40 |
| 3 | 1 key, and 2 key/channels with 40°,60°,80° to avoid cross-iterface |

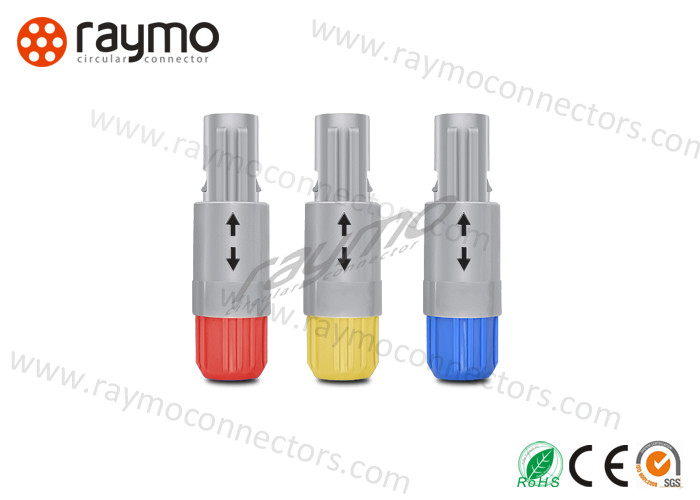

| 4 | Many colour options RED, GREEN, BLACK, WHITE, YELLOW, BLUE, GRAY |
| 5 | High pin density contributing to equipment miniaturization |
| 6 | Shock resistant designs |
| 7 | Functional in a wide temperature range from -40°C to +125°C |
| 8 | Available solder and PCB or right angle PCB contact. |
| 9 | ISO:9001-2015, CE ,RoHS2.0, SGS |
