होम उत्पादJ30J ConnectorJ30J Series 31-Pin Connector 500VAC -55～+125℃ Temperature Range

J30J Series 31-Pin Connector 500VAC -55～+125℃ Temperature Range

J30J Series 31-Pin Connector 500VAC -55～+125℃ Temperature Range
J30J Series 31-Pin Connector 500VAC -55～+125℃ Temperature Range
J30J Series 31-Pin Connector 500VAC -55～+125℃ Temperature Range J30J Series 31-Pin Connector 500VAC -55～+125℃ Temperature Range
बुनियादी जानकारी
ब्रांड नाम: Raymo
प्रमाणन: CE/RoHs/REACH/ISO9001:2015
मॉडल संख्या: J30J-31TJS
दस्तावेज़: J30J Miniature Rectangular ...es.pdf
Minimum Order Quantity: 1 Piece
मूल्य: 5-15 USD
Packaging Details: CTN
Delivery Time: 3-4 Weeks
भुगतान शर्तें: टी/टी, डी/ए, डी/पी, वेस्टर्न यूनियन, मनीग्राम
Supply Ability: 5000PCS Per Month
अब से संपर्क करें
सहनशील वोल्टेज: 500VAC आवेदन: इलेक्ट्रॉनिक उपकरण
केंद्र कंडक्टर: तांबा मिश्र धातु, सोने की चढ़ाना ग्रिड दूरी: 2.54 × 2.54
प्रकार: योजक तापमान की रेंज: -55～+125 ℃
तार की लंबाई: 50 सेमी, 500 मिमी संभोग केबल: AFR-250, सफेद तार 0.1 ~ 0.15 मिमी 2
प्रमुखता देना:

J30J series 31-pin connector

,

500VAC J30J connector

,

J30J connector high temperature range

J30J-31TJS 31 Pins J30J Series Connector
2.54×2.54 Grid Distance | ≤1.01X10-3 Pa.cm3/s Leak Rate
Attribute Value
Withstanding Voltage 500VAC
Application Electronic Equipment
Center Conductor Copper Alloy, Gold Plating
Grid Distance 2.54×2.54
Type Connector
Temperature Range -55～+125 ℃
Wire Length 50cm, 500mm
Mating Cable AFR-250, White Wire 0.1~0.15mm2
Product Overview
The J30J series connector is a versatile and reliable product designed for demanding applications. Part of the MWDM Glenair Micro-D series, this microminiature connector features Micro Twist Pin Contact technology for secure connections in space-constrained environments. Available in multiple pin configurations (9 to 100 pins), it offers flexibility for various connectivity needs.
Key Features

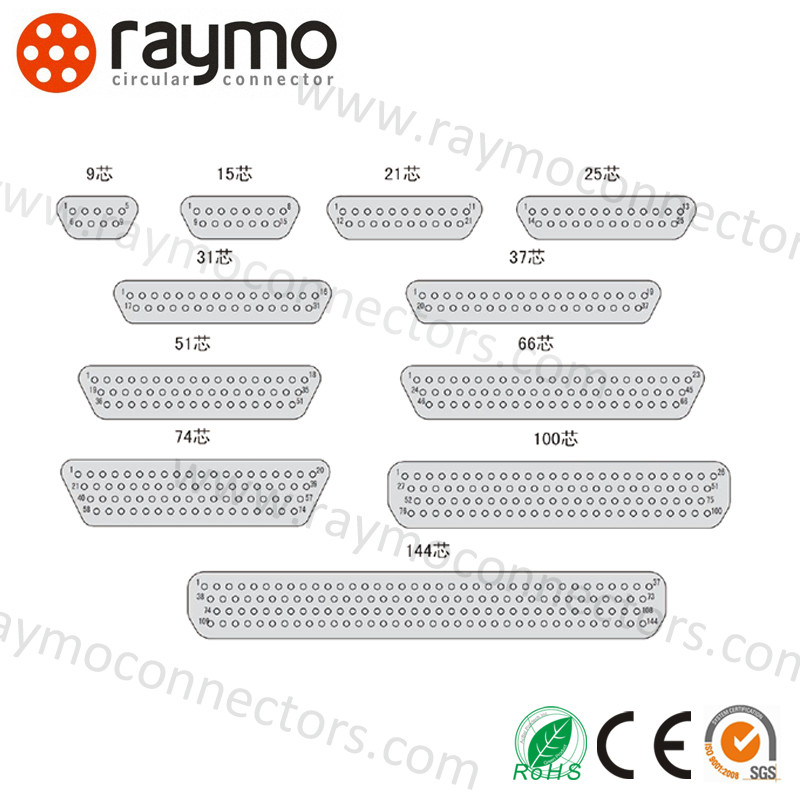

  • Multiple pin configurations: 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 pins
  • High withstanding voltage: 500VAC
  • Wide temperature range: -55～+125 ℃
  • Adjustable cable length to meet project requirements
  • Micro Twist Pin Contact technology for stable connections
  • Compatible with AFR-250 mating cable (White Wire 0.1~0.15mm2)
Technical Specifications
Withstanding Voltage 500VAC
Temperature Range -55～+125 ℃
Voltage Rating 250V
Leak Rate ≤1.01X10-3 Pa.cm3/s
Mating Cycle 500 Times
Applications
The J30J series connector is ideal for demanding applications across multiple industries:
  • Military/Defense: Communication systems, radar equipment
  • Aerospace: Avionics, satellite communication
  • Industrial Automation: Control systems, sensors
  • Telecommunications: Network infrastructure
  • Medical Equipment: Compliant with CE, RoHS, REACH standards
Support & Services
Our technical support team provides comprehensive assistance for installation, troubleshooting, and product compatibility. We ensure seamless integration and optimal performance of your J30J series connectors.

टैग:

J30J series gold plated connector

MIL-Spec micro-D connector

2.54×2.54 grid connector
