प्रकार:	अनुकूलक	लिंग:	पुरुष
शेल मॉडल:	एसएस शॉर्ट प्लग	आवास सामग्री:	क्रोम प्लेटेड के साथ पीतल
खोल का आकार:	0f/102, 1f/103, af/1031, 2f/104	संपर्क नंबर।:	2, 3, 4, 5, 6, 7, 19pins
कनेक्टर प्रकार:	सोल्डर संपर्क	आईपी रैंकिंग:	IP68
धैर्य:	> 5000 चक्र	आघात प्रतिरोध:	100 ग्राम, 6 एमएस
नमी:	60 डिग्री सेल्सियस पर 95% तक	नमक स्प्रे परीक्षण:	> 96h
तापमान की रेंज:	-55 ° C, +250 ° C	कंपन प्रतिरोध:	10-2000 हर्ट्ज, 15 ग्राम
परिरक्षण दक्षता:	> 10 मेगाहर्ट्ज पर 75 डीबी,> 1 गीगाहर्ट्ज पर 40 डीबी
प्रमुखता देना:	IP68 waterproof circular connector , 19 pin male solder connector , SS 1031A019 circular push pull connector

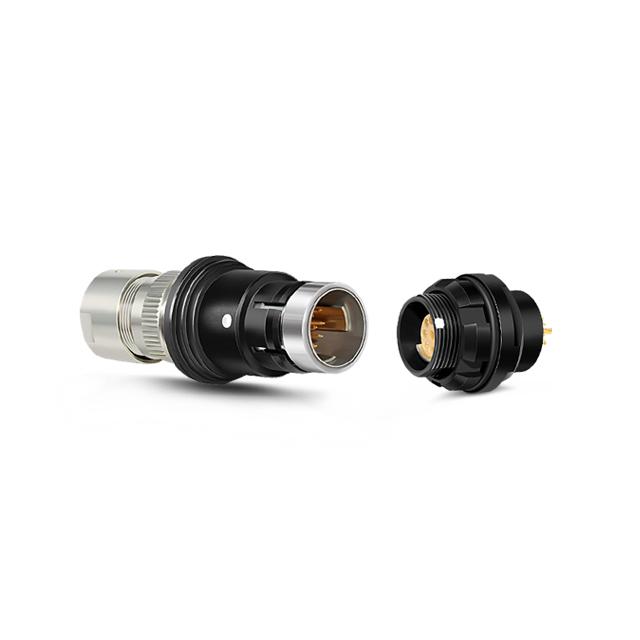

Alternative Fischers Plug IP68 Waterpoof Circular Connector SS 1031A019 140+, 19 Way Connector, SS 1031

Product Specifications

Attribute	Value
Type	Adapter
Application	Audio & Video
Gender	Male
Shell model	SS short plug
Housing Material	Brass with chrome plated
Color	Natural / Black chrome
Shell size	0F/102, 1F/103, AF/1031, 2F/104
Contact no.	2, 3, 4, 5, 6, 7,...,19 pins
Connector type	Solder contacts
Cable assembled or not	Yes
Certificate	ISO9001/CE/ROHS/REACH
IP Ranking	IP68

Product Details

RM-SS-AF1C-P19JS-062 = SS 1031 A019 - 130+

SS short plug, Key code 1, 1031 series, 19 pin, male solder contacts
Available in Natural or Black chrome-plated color housing
Shell size: AF/1031
Pins options: 10 pin, 12 pin, 15 pin, 19 pin
Certifications: CE, RoHS, ISO9001:2015

Technical Characteristics

Endurance

> 5000 cycles

Shock resistance

100 g, 6 ms

Humidity

up to 95% at 60°C

Salt spray corrosion test

> 96h

Temperature range

-55°C to +250°C

Protection index (mated)

IP68

Resistance to vibration

10-2000 Hz, 15 g

Climatical category

55/175/21

Shielding efficiency

at 10 MHz, > 75 dB
at 1 GHz, > 40 dB

Certifications

ISO9001/CE/ROHS/SGS

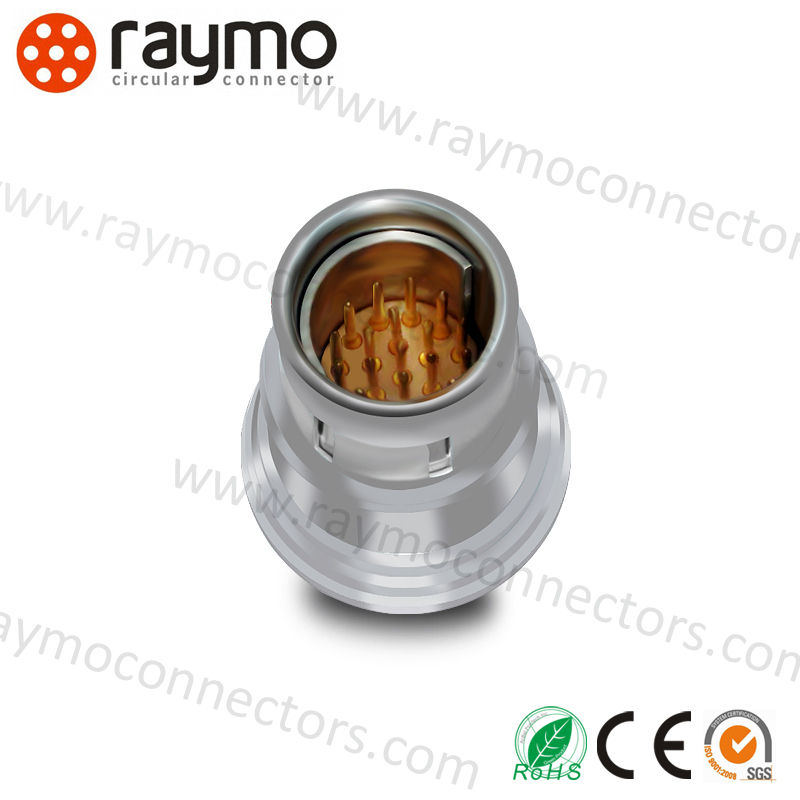

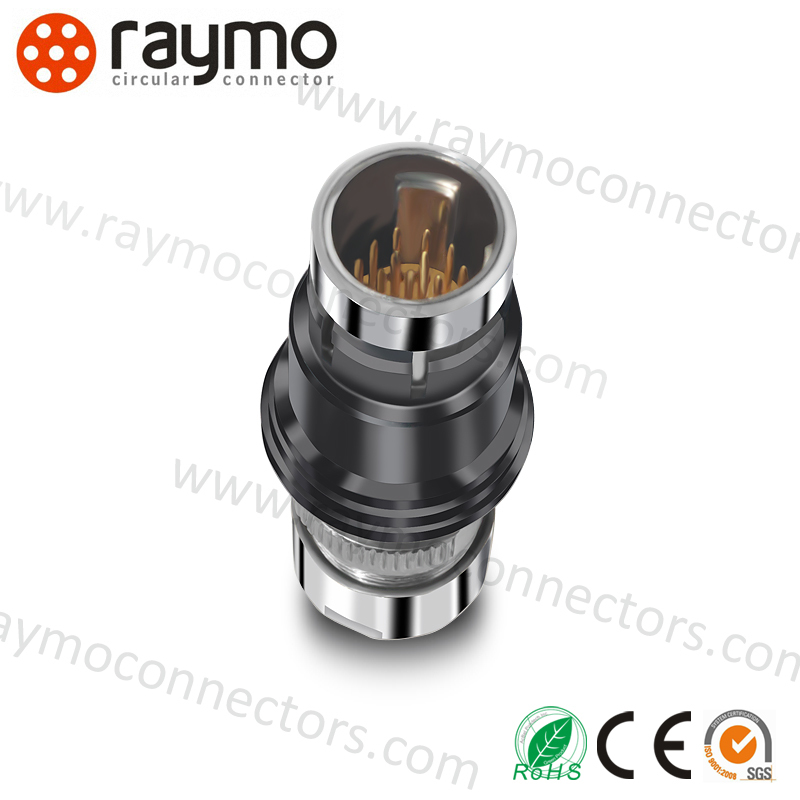

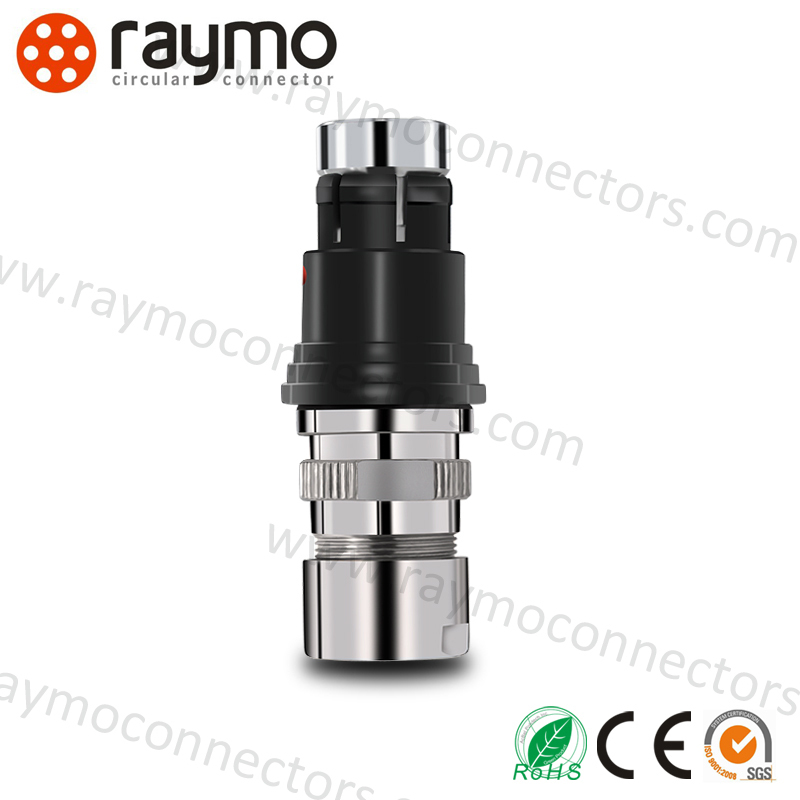

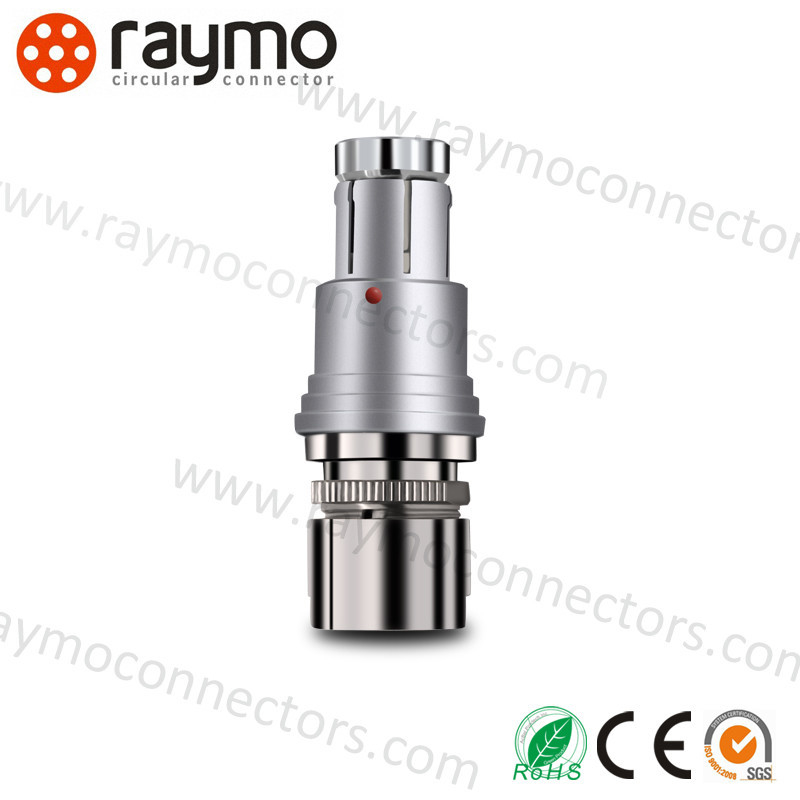

Product Images

Applications

RAYMO's high quality connectors are found in a variety of challenging applications and environments including:

Automotive
Audio-video
Aviation
Communications
Industrial Control
Information Systems
Machines
Medical
Test and Measurement
Data Acquisition
Data Transfer Equipment
Module Power
Sensor Systems
Instrumentation
Analysis Applications

Related Products

Mimi snap connector LEMOS B series, waterproof K series, half-moon S series, REDEL P series connectors
Circular Connector FISCHERS 102 103 1031 104 series connectors
Push Pull Connector HIROSE HR10A series connectors
Screw Connector Binders M16 682 420 series connectors
Ultimate waterproof circular connector RM-U series
Deepsea waterproof circular connector RM-V series

CABLE ASSEMBLY can be designed according to customer needs. Accept OEM orders.

Our Company

RAYMO is a manufacturer that:

Focuses on manufacturing & exporting metal and plastic circular push pull connectors and cable assemblies
Products are 100% compatible with original specifications
Product series include RM-B, RM-K, RM-S, RM-F, RM-E, RM-HR10A, RM-P, RM-M4, RM-M12, RM-M16, RM-U, RM-V BNC, B680, B423, 38999, 26482
Provides CO, Form A, Form E for customer clearance
Certified with CE, ROHS, ISO:90001-2015, SGS Audited manufacturer
All items tested to work normally after 5000 mating cycles

Our Certifications

Our Exhibition History

We are here!

2014 4-11/15 HK Fair
2014 10-11/15 HK Fair
2015 10-2/7 ICEEB, Brasil
2016 4-11/15 HK Fair
2017 9-11/16 NAB Show, Netherlands
2018 11-12/15 Electronic Munich, Germany Booth no is C6.337-2 Date: Nov.13-16th

Packing & Delivery

Packing Method

10 or 20 pcs in a PE bag
Cable assembly: one piece in one bag, then put them into carton
Every 50 or 100 pcs of connectors in a small box (size: 19cm × 15cm × 10cm)

Shipping Terms

Loading Port: Shenzhen, China

1~10pcs: 3~5 working days
11~100pcs: 5~7 working days
101~500pcs: 7~10 working days

Goods can be shipped by air shipping, sea and other methods. Delivery time depends on order quantity and exact items.

Frequently Asked Questions

Q1. What is your terms of packing?

A: Generally, we pack our goods in PE bag and brown cartons. OEM&ODM is available after getting your authorization letters.

Q2. What is your terms of payment?

A: T/T 100% or Alibaba on-line order are both OK.

Q3. How about your delivery time?

A: Generally, it will take 5~7 working days after receiving your advance payment.

Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q8: How do you make our business long-term and good relationship?

A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

If you couldn't find exact items you want, please email us exact models you need. Best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
