| उत्पत्ति के प्लेस: | शेनझेन, चीन |
|---|---|
| ब्रांड नाम: | RAYMO |
| प्रमाणन: | RoHs2.0, CE, ISO9001:2015, SGS, Reach |
| मॉडल संख्या: | एम 12 कनेक्टर |
| न्यूनतम आदेश मात्रा: | 1 टुकड़ा/टुकड़े |
| मूल्य: | negotiable |
| पैकेजिंग विवरण: | प्लास्टिक बैग और कार्टन |
| प्रसव के समय: | 5-7 कार्य दिवस |
| भुगतान शर्तें: | टी/टी, डी/ए, डी/पी, एल/सी, मनीग्राम, वेस्टर्न यूनियन |
| आपूर्ति की क्षमता: | 5000 टुकड़े/हप्ता |
| PRCT नाम: | M12 परिपत्र कनेक्टर | कनेक्टर लॉकिंग सिस्टम:: | स्क्रू लॉकिंग |
|---|---|---|---|
| संपर्क नंबर।: | 3pins, 4pins, 5pins, 8pins, 12pins उपलब्ध हैं | इन्सुलेटर: | स्वाभाविक |
| शेल सामग्री: | निकट मढ़वाट में पीतल | संरक्षण की उपाधि: | आईपी 40 |
| यांत्रिक संचालन: | > 500 संभोग चक्र | सीमा शुल्क टैरिफ संख्या: | 85369010 |
| प्रमुखता देना: | Screw Locking M12 Circular Connector,Wire Harness M12 Circular Connector,PBT Insulator M12 Connector |
||
M12 circular connectors facilitate the simple and cost effective connection of signal, data and power in the automation industry. Raymo M12 series are widely used in many applications of automation, such as sensor& actuator, CANopen, DeviceNET,Profibus,PROFINET, EtherCAT, Ethernet, INTERBUS,CC-Link, Motor servo, Digital camera,Railway process control, and so on.

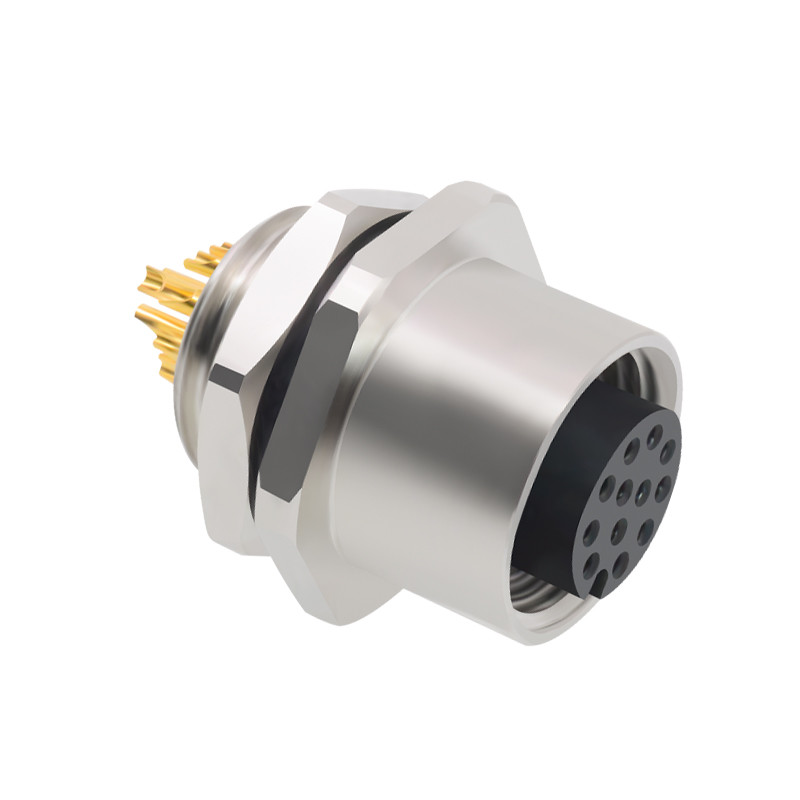

Raymo M12 PCB connectors are front and rear bulkhead mounted M12 connectors designed for easy handling on the PCB and
compatibility with wave soldering processes. M12 PCB connectors include an incorporated wire clip with an integrated PCB retention
feature to secure it in the PCB during the reflow process, individual wires come stripped and pre-tinned ready for soldering.
|
General features: |
|
|
Standard |
IEC 61076-2-101 |
|
Termination |
Solder PCB |
|
Connector locking system |
Screw |
|
Degree of protection |
IP67, IP68, IP69K |
|
Ambient temperature(operation) |
-25°C~+85°C |
|
Mechanical operation |
>100 mating cycles |
|
Customs tariff number |
8538900000 |
|
Environmental compliance |
RoHs, Reach |
|
Electrical parameters: |
|
|
Rated voltage |
30V~250V |
|
Rated impulse voltage |
500V |
|
Rated current(40°C) |
1.5A~4A |
|
Contact resistance |
≤5mΩ |
|
Insulation resistance |
≥100MΩ |
|
Materials: |
|
|
Connector body |
TPU |
|
Male pin |
Brass with gold plated |
|
Female pin |
Phosphorus copper with gold plated |
|
Shell |
Brass with nickel plated |
|
O-ring material |
Fluorine ring |
|
Black glue |
Epoxy resin |
With excellent EMI shielding and an environmental protection rating of IP67 when mated, this robust M12 Screw locking compliant with DIN EN 61076-2-106 connector range is an ideal solution for ensuring that power and signal connections are not compromised in harsh environments and industrial applications.
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented metal and plastic circular push-pull self-latching connectors and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers.
This vast portfolio enables you to select the ideal connector configuration to suit almost any specific requirement in most markets inclyding medical devices, test and measurement instruments, machinery, audio video broadcast, telecommunications and military
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
