होम उत्पादगोल धक्का खींच कनेक्टरIP50 Male Plug FGG 0B 306 Circular Push Pull Connector

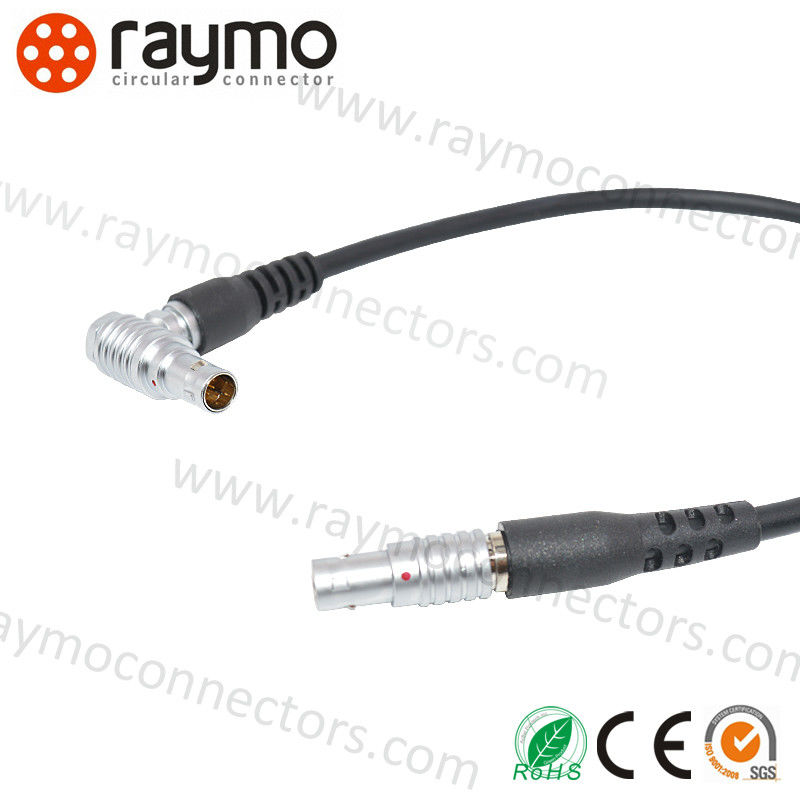

IP50 Male Plug FGG 0B 306 Circular Push Pull Connector

IP50 Male Plug FGG 0B 306 Circular Push Pull Connector
IP50 Male Plug FGG 0B 306 Circular Push Pull Connector
IP50 Male Plug FGG 0B 306 Circular Push Pull Connector IP50 Male Plug FGG 0B 306 Circular Push Pull Connector
बुनियादी जानकारी
उत्पत्ति के प्लेस: शेनझेन, चीन
ब्रांड नाम: RAYMO
प्रमाणन: RoHS2.0, ISO:9001-2015, CE , SGS, REACH
मॉडल संख्या: FGG.0B.306
न्यूनतम आदेश मात्रा: 1 टुकड़ा
मूल्य: negotiable
पैकेजिंग विवरण: 100 पीसी / सीटीएन
प्रसव के समय: 5-7 कार्य दिवस
भुगतान शर्तें: वेस्टर्न यूनियन, टी/टी, डी/पी, डी/ए, एल/सी, मनीग्राम
आपूर्ति की क्षमता: 5000 पीसी/हप्ता
अब से संपर्क करें
PRCT नाम: पुश पुल केबल कनेक्टर प्रकार: पुरुष महिला प्लग
खोल का आकार: 0 बी, 12 मिमी संपर्क नंबर।: 6 पिन
टर्मिनल: मिलाप आईपी ​​रैंकिंग: IP50
प्रमुखता देना:

0B Circular Push Pull Connector

,

306 Circular Push Pull Connector

,

FGG 6 Pin Circular Connector

male plug FGG.0B.306 for test and measurement instruments, 6 pin circular push pull connector





RAYMO is a manufacturer main in:

We also can provide customers with access to many of today's well-known brand compatible connectors at very competitive prices with off-the-shelf delivery.

Prct description
RM-B series metal circular push pull connector with below features:



  • can be 100% compatible with original lemo connector
  • 360 angle screening for full EMC shielding.
  • Robust and shock resistant designs ideal for equipment used in the field
  • Push pull locking metal connector B-series connector, cable to cable connector, free socket, inline connector
  • Increased safety and user friendliness mechanical and color coding prevent misconnection
  • Increased equipment life span guiding mechanism optimally protects the contacts
Shell size Contacts no. With Solder & PCB type
00 2 3 4 　 　 　 　 　 　 　 　 　 　
0B 2 3 4 5 6 7 9 　 　 　 　 　 　
1B 2 3 4 5 6 7 8 10 12 14 16 　 　
2B 2 3 4 5 6 7 8 10 12 14 16 19 26
3B 3 4 7 8 10 12 14 16 18 21 30 　 　



Technical Characteristics
Temperature Range
-55°C, +250°C
Resistance to vibrations
15 g [10 Hz - 2000 Hz]
Shock Resistance
100 g [ 6 ms]
Salt spray corrosion test
>96hrs
Climatical Category
50/175/21
Humidity
Up to 95% at 60°C
IP Rating
IP50
Certifications
ISO9001/ CE/ ROHS2.0/ SGS



IP50 Male Plug FGG 0B 306 Circular Push Pull Connector 0
Applications
RAYMO connectors have been widely used in the areas of telecommunication, electronics, medical equipments, aviation, audio-video, petroleum, motor and power industries, electrical signal connection, IC control systems, test and measurement instruments, ect.

IP50 Male Plug FGG 0B 306 Circular Push Pull Connector 1



FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in PE bag and brown cartons.
OEM&ODM is available after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 100% or Alibaba on-line order are both OK.
Q3. How about your delivery time?
A: Generally, it will take 5~7 working days after receiving your advance payment.
Q4. Can you prce according to the samples?
A: Yes, we can prce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
