| उत्पत्ति के प्लेस: | शेनझेन, चीन |
|---|---|
| ब्रांड नाम: | RAYMO |
| प्रमाणन: | SGS, RoHS2.0, ISO:9001-2015, CE, REACH |
| Model Number: | FFA.1S.250.CLAC42Z |
| न्यूनतम आदेश मात्रा: | 5 टुकड़े/टुकड़े |
| मूल्य: | negotiable |
| Packaging Details: | Plastic Bag & Carton |
| Delivery Time: | 5-7wds |
| भुगतान शर्तें: | वेस्टर्न यूनियन, एल/सी, डी/ए, डी/पी, टी/टी |
| आपूर्ति की क्षमता: | 5000 टुकड़े/हप्ता |
| Type: | FFY type cable plug | Shell Size: | 00S, 0S, 1S, 2S |
|---|---|---|---|
| Contacts: | COAXIAL PIN, 50ohm | Gender: | Male contact |
| Insulator: | PPS, PEEK is available | आईपी रैंकिंग: | IP50 |
| प्रमुखता देना: | cable elbow connector,cable to cable connector |
||

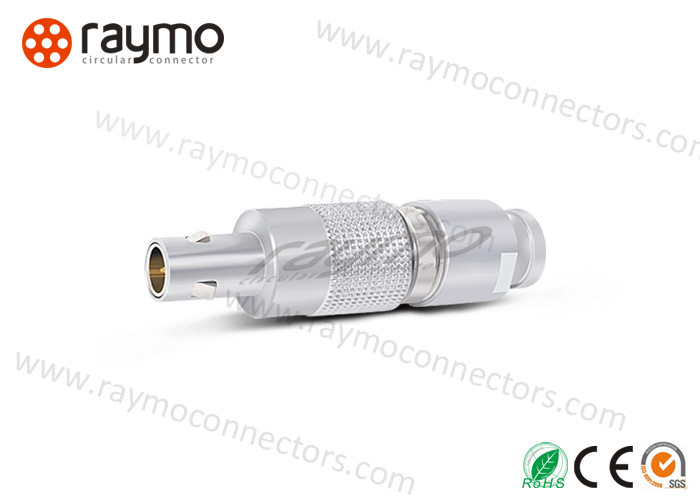

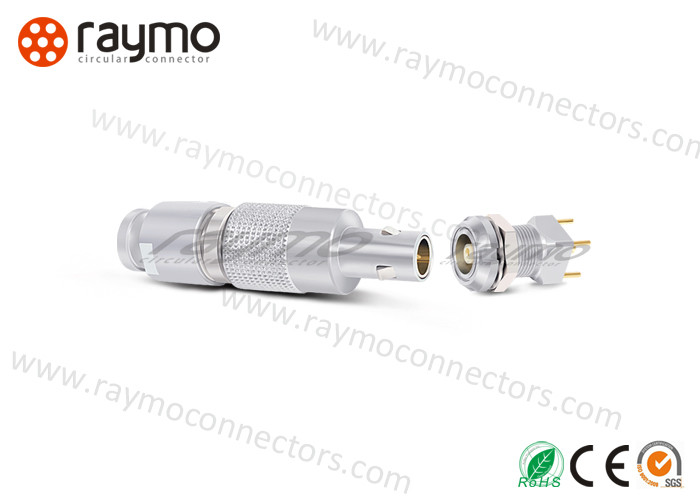

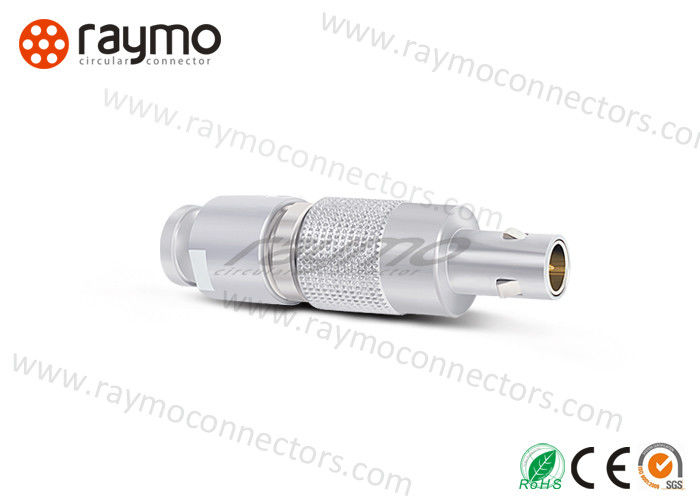

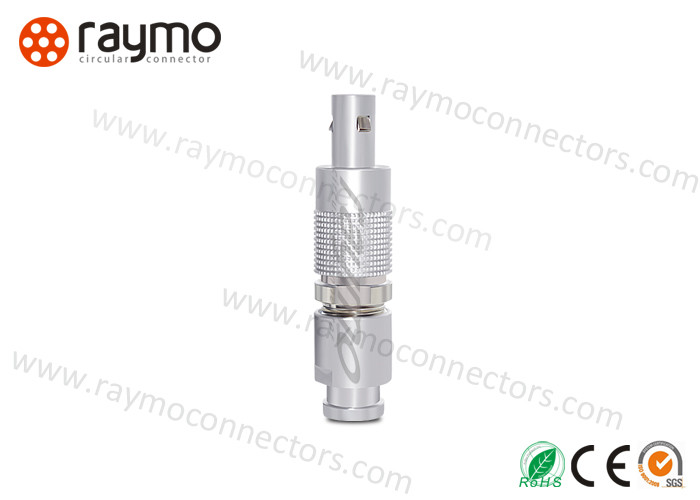

LEMOS S SERIES COAXIAL 50OHM CIRCULAR PUSH PULL CONNECTORS FFY.1S.250.CLAC42 FOR ULTRASONIC DEVICE
1S 50OHM Coaxial connector

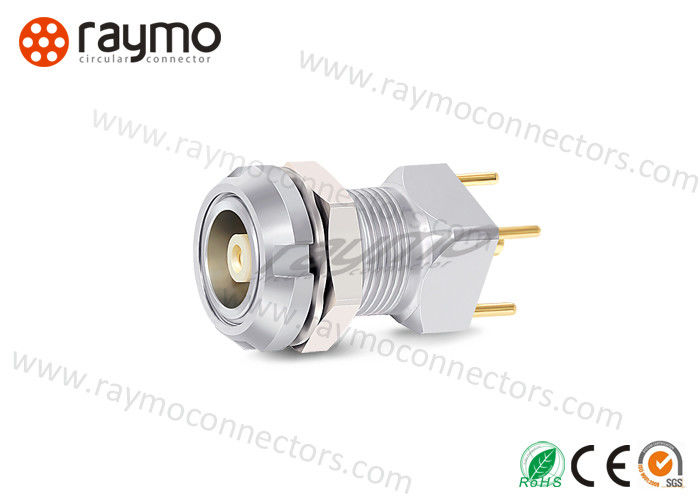

Straight PCB, solder and elbow PCB contacts are available too
|
RAYMO P/N |
Lemo P/N |
SAMPLES |
|
RM-FFY-1SC-250-JS42Z |
FFY.1S.250.CLAC42Z |
FREE SAMPLES |
| Shell size | Contacts no. ( Both with Solder & PCB type ) | |||||
| 00S | 1(coaxial) | |||||
| 0S | 1(coaxial) | 2 | 3 | 4 | ||
| 1S | 1(coaxial) | 2 | 3 | 4 | 5 | 6 |
| Technical Characteristics | |||
| Temperature Range | - 65° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shell Material | brass with chrome plated | Humidity | up to 95% at 60° C/140F |
| Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >144hr |
| Climatical Category | 50/175/21 | Shielding (min) | > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
| IP Rating | IP 50 | Endurance(shell) | 5000 mating cycles |
