होम उत्पादगोल धक्का खींच कनेक्टरFGG FEG FHG 1B Shell Circular Military Connectors Male Female

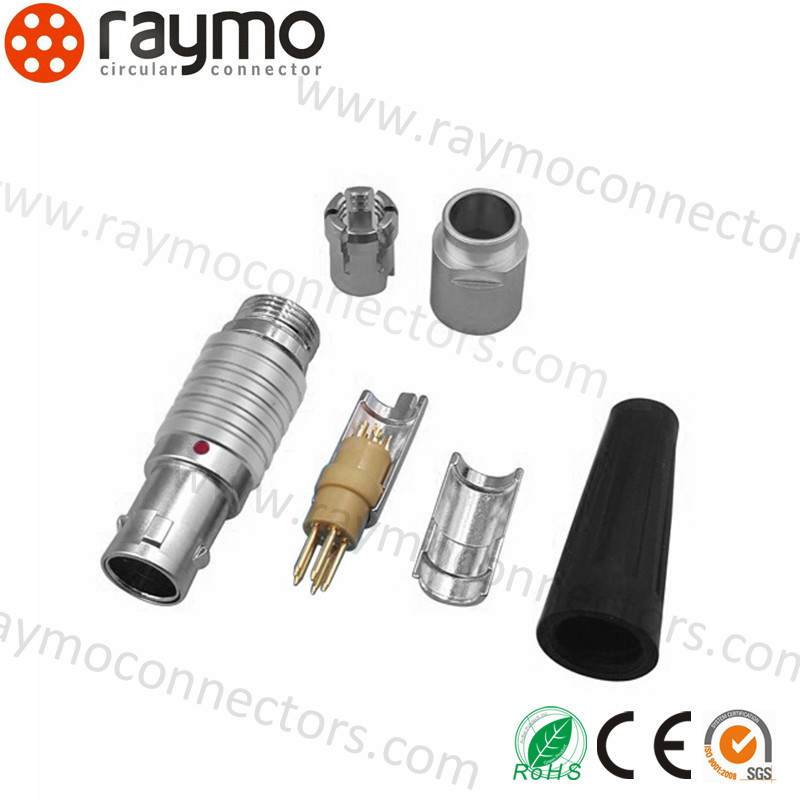

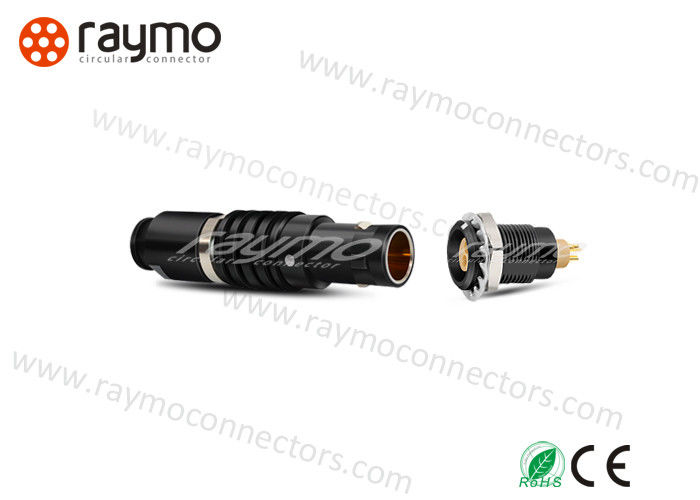

FGG FEG FHG 1B Shell Circular Military Connectors Male Female

FGG FEG FHG 1B Shell Circular Military Connectors Male Female
FGG FEG FHG 1B Shell Circular Military Connectors Male Female FGG FEG FHG 1B Shell Circular Military Connectors Male Female
बुनियादी जानकारी
उत्पत्ति के प्लेस: शेनझेन, चीन
ब्रांड नाम: RAYMO
प्रमाणन: RoHS2.0, ISO:9001-2015, CE , SGS, REACH
मॉडल संख्या: Fgg.1b.312.clad
न्यूनतम आदेश मात्रा: 1 टुकड़ा
मूल्य: negotiable
पैकेजिंग विवरण: 100 पीसी / सीटीएन
प्रसव के समय: 5-7 कार्य दिवस
भुगतान शर्तें: वेस्टर्न यूनियन, टी/टी, डी/पी, डी/ए, एल/सी, मनीग्राम
आपूर्ति की क्षमता: 5000 पीसी/हप्ता
अब से संपर्क करें
PRCT नाम: घुमावदार कनेक्टर खींचें प्रकार: FGG FEG FHG प्लग
खोल का आकार: 1बी संपर्क नंबर।: 12 पिन
टर्मिनल: मिलाप आईपी ​​रैंकिंग: IP50
प्रमुखता देना:

1B Shell Circular Military Connectors

,

FHG Circular Military Connectors

,

FGG Waterproof Circular Connectors

alternative push pull male female low voltage quick release, circular military connectors





What we can offer



As a creative customer-oriented manufacturer located in Shenzhen, Raymo focusing on manufacturing connectors and cable assemblies to serve over 75 countries and regions since 2010.

Compatible B series connectors
RM-b series metal circular push pull connector with below features:



  • Secure high performance push-pull self-locking system
  • High pin density contributing to equipment miniaturization
  • Alignment Key and Polarized Keying System to avoid cross-interface
  • 360° EMC shielding
  • Robust and shock resistant designs
  • Functional in a wide temperature range from -50°C to +250°C
  • Available solder, PCB and right angle PCB contact



Technical Characteristics
Temperature Range
-55°C, +250°C
Resistance to vibrations
15 g [10 Hz - 2000 Hz]
Shock Resistance
100 g [ 6 ms]
Salt spray corrosion test
>96hrs
Climatical Category
50/175/21
Humidity
Up to 95% at 60°C
IP Rating
IP50
Certifications
ISO9001/ CE/ ROHS2.0/ SGS



FGG FEG FHG 1B Shell Circular Military Connectors Male Female 0
Applications
  • Army, Navy, Air Force, Gendarmerie, Ministry of National Defense and Coast Guard
  • Midcal equipments like Disposable equipment
  • Test & measurement like Data acquisition
  • Broadcast, like HD and SD cameras
  • Energy, like Renewable energies
  • Extreme, such as Sailboat racing

FGG FEG FHG 1B Shell Circular Military Connectors Male Female 1



FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in PE bag and brown cartons.
OEM&ODM is available after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 100% or Alibaba on-line order are both OK.
Q3. How about your delivery time?
A: Generally, it will take 5~7 working days after receiving your advance payment.
Q4. Can you prce according to the samples?
A: Yes, we can prce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
